JsonTreeModelNode Class Reference

JsonTreeModelNode is the base class for the internal data structure behind JsonTreeModel. More...

#include <jsontreemodel.h>

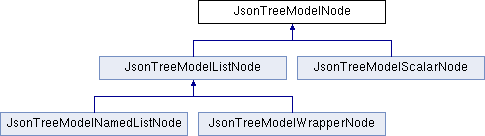

Inheritance diagram for JsonTreeModelNode:

Public Types
enum	Type { Scalar, Object, Array }
	This enum describes the type of data represented by a JsonTreeModelNode. More...

Public Member Functions
	JsonTreeModelNode (JsonTreeModelNode *parent)
	Constructs a new node with the given parent. More...
virtual	~JsonTreeModelNode ()
	Frees the memory held by this node and its children. More...
JsonTreeModelNode *	parent () const
	Returns this node's parent. More...
void	setParent (JsonTreeModelNode *parent)
	Makes this node a child of parent. More...
virtual Type	type () const =0
virtual QJsonValue	value () const =0
	Returns the JSON value represented by this node and its children (if any). More...

Detailed Description

JsonTreeModelNode is the base class for the internal data structure behind JsonTreeModel.

Member Enumeration Documentation

Type

enum JsonTreeModelNode::Type

This enum describes the type of data represented by a JsonTreeModelNode.

See also

type()

Enumerator
Scalar	Represents scalar JSON values (nulls, Booleans, numbers, and strings).
Object	Represents JSON objects.
Array	Represents JSON arrays.

Constructor & Destructor Documentation

JsonTreeModelNode()

JsonTreeModelNode::JsonTreeModelNode ( JsonTreeModelNode *  parent )

inline

Constructs a new node with the given parent.

Note

Only a JsonTreeModelListNode (or one of its subclasses) can be a parent.

~JsonTreeModelNode()

JsonTreeModelNode::~JsonTreeModelNode ( )

inlinevirtual

Frees the memory held by this node and its children.

Warning

This node is not automatically removed from its parent's list of children.

Member Function Documentation

parent()

JsonTreeModelNode * JsonTreeModelNode::parent ( ) const

inline

Returns this node's parent.

See also

setParent()

setParent()

void JsonTreeModelNode::setParent ( JsonTreeModelNode *  parent )

inline

Makes this node a child of parent.

Note

Only a JsonTreeModelListNode (or one of its subclasses) can be a parent.

Warning

This function only updates this node's internal pointer to its parent. The caller must manually update the child's registration.

See also

parent()

type()

virtual Type JsonTreeModelNode::type ( ) const

pure virtual

Implemented in JsonTreeModelNamedListNode, JsonTreeModelListNode, and JsonTreeModelScalarNode.

value()

QJsonValue JsonTreeModelNode::value ( ) const

pure virtual

Returns the JSON value represented by this node and its children (if any).

Implemented in JsonTreeModelWrapperNode, JsonTreeModelNamedListNode, JsonTreeModelListNode, and JsonTreeModelScalarNode.

---

The documentation for this class was generated from the following files:

• src/jsontreemodel.h
• src/jsontreemodel.cpp
